Dataset Details
| Title | SLP76 mEos3.3 Jurkat on anti-CD3CD28 5mins |
|---|---|
| Modality | PALM |
| Localization Software | ThunderSTORM |
| Fluorophore | mEos3.3 |
| Protein | SLP76 |
| UniProt Protein ID | |
| Cell Type | Jurkat E6.1 |
| Primary Cell Line | False |
| Cell Line Company | |
| Cell Line Number | |
| DOI | |
| Contact Email for Dataset |
s.shirgill@bham.ac.uk
If you need access to the raw data, please use this email to make your request. Clicking the email link will open your default email client. |
| Drift Corrected | True |
| Blink Corrected | False |
| Effective Pixel Size (nm) | 117.0 |
| Experimental Notes | Jurkat T cells activated on anti-CD3CD28 coated glass surface, then fixed after 5 mins |
| Uploaded by | SanShirg |
| Upload date | 2 May 2025, 8:14 a.m. |
| Most Similar Dataset | SLP76 mEos3.3 Jurkat on Poly-l-Lysine 5mins |
| Minimum Dissimilarity Score (thinned) | 0.6116000210405916 |
| Overall Mean Localization Precision (nm) | 5.490 |
Data Files
Self-Similarity Histograms

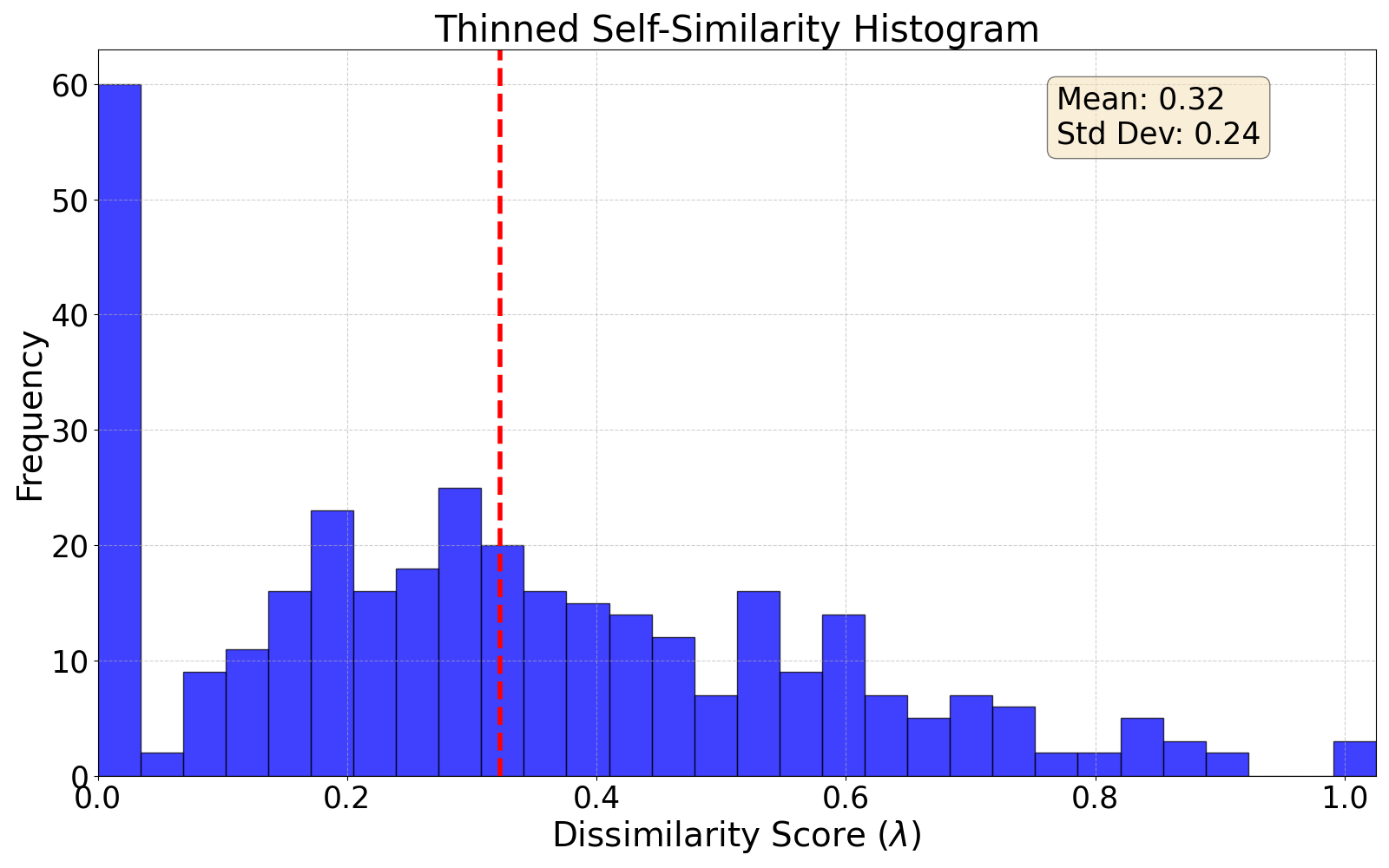

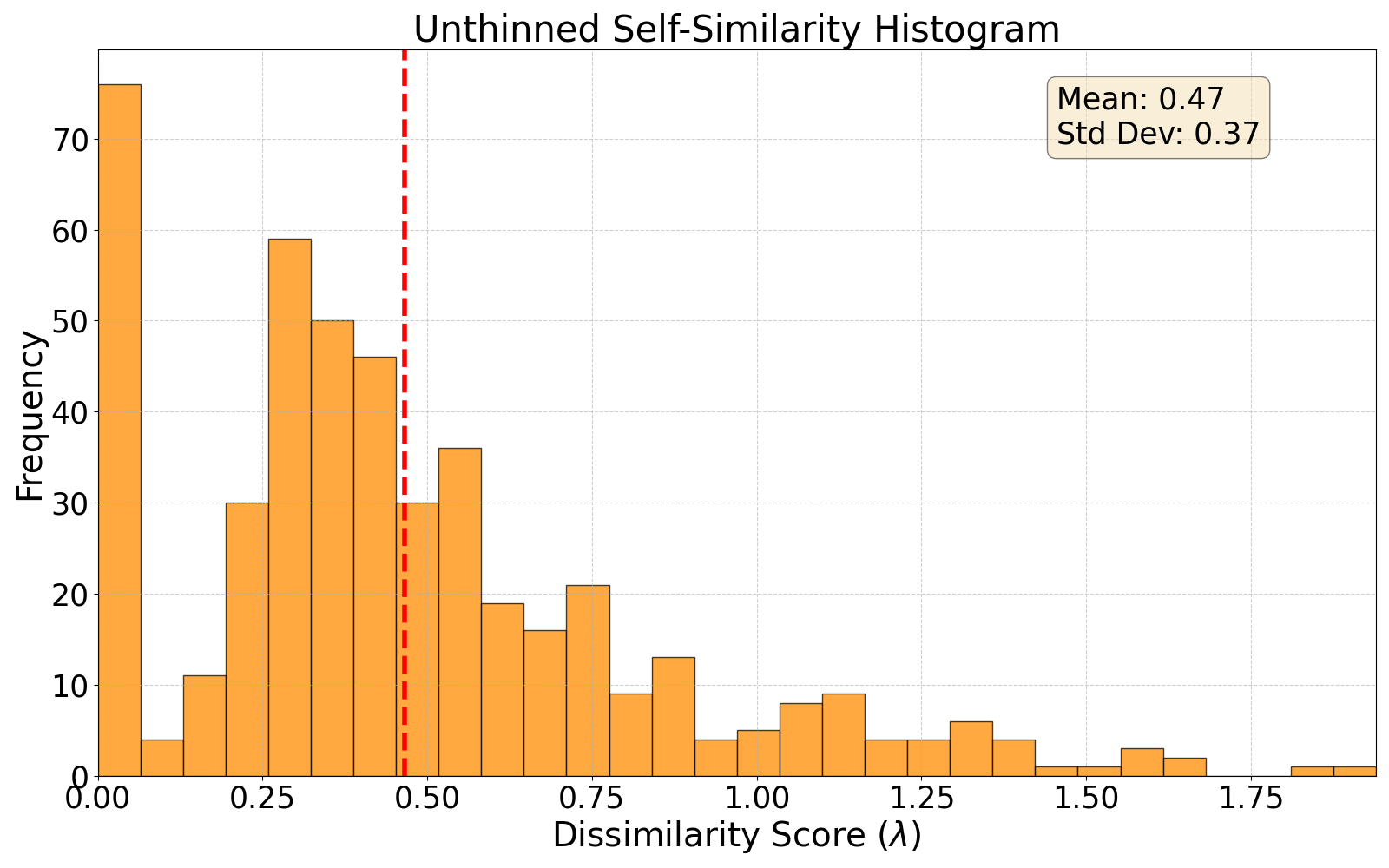

Self-similarity histograms and statistics for both thinned (left) and unthinned (right) data have been calculated. The dashed red line on both graphs represents the mean.
Help Section
To access our Self-Similarity Interpretation Guide, click here.
Similarity Search Results
Help Section
- To learn more about the similarity algorithm, dissimilarity scores, and the difference between thinned and unthinned data, click here.
- A Dissimilarity Score (thinned) (mean) of "None" indicates that datasets have no grid square densities above the thinning threshold.
